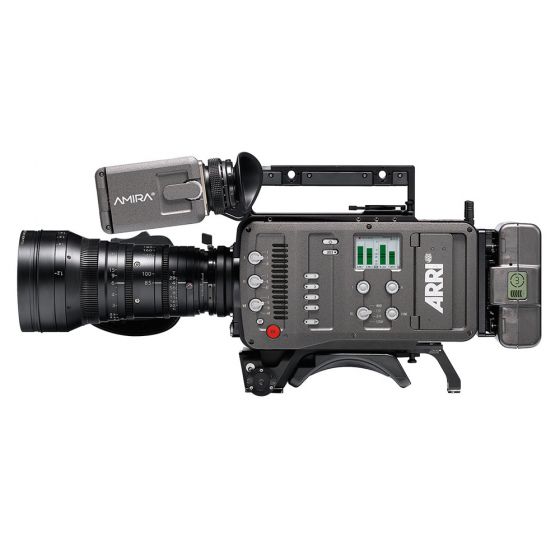

INCLUDED K1.71700.0 1x AMIRA camera body, Camera handle, Viewfinder mount, Viewfinder cables, USB stick K2.75004.0 1x AMIRA Viewfinder MVF-1 SENSOR TYPE 35mm format ARRI ALEV III CMOS (28.17x18.13) SENSOR PIXEL COUNT 3200x1800 (4K UHD, 3.2K) 2880 x 1620 (HD), 2868 x 1612 (2K), for monitoring with surround area: 3168 x 1772 (HD), 3154x1764 (2K), 3414 x 2198 (4K UHD, 3.2K) RECORDING PIXEL COUNT 1920 x 1080 ProRes HD, MPEG 2 and HD outputs, 2048 x 1152 ProRes 2K, 3200 x 1800 ProRes 3.2K*, 3840 x 2160 Pro Res 4K UHD and UHD outputs* LENS MOUNTS PL mount w/ Hirose connector and LDS, B4 mount w/ Hirose connector, EF mount, PL mount titan (ALEXA Mini) SHUTTER Electronic shutter, 5.0° to 356.0° EXPOSURE INDEX Adjustable from EI 160-3200 in 1/3 stops (EI 800 base sensitivity) EXPOSURE LATITUDE 14+ stops over the entire sensitivity range from EI 160 to EI 3200 as measured with the ARRI Dynamic Range Test Chart (DRTC-1) AUDIO RECORDING 4 channels, 24 bit PCM, 48 kHz INTEGRATED MOTORIZED ND FILTERS FSND 0.6, 1.2, 2.1 SOUND LEVEL < 20 dB(A) WEIGHT ~ 4.1 kg/9.2 lbs (camera body with PL Lens mount) DIMENSIONS Length: 309mm/12.1", width: 139 mm/5.4" , height: 149mm/5.8" (camera body with PL lens mount) ENVIRONMENTAL -20° C to +50° C (-4° F to +122° F) @ 95% humidity max, non-condensing, splash and dust-proof through sealed electronics VIEWFINDER AMIRA Multi Viewfinder MVF-1 (OLED and LCD) with flip-out LCD screen, CAMERA CONTROL PANEL (CCP-1) LCD control panel with option to daisy-chain MVF-1 OUTPUTS VIDEO 2x HD-SDI outputs: 1.5G, (dual) 3G and (dual) 6G; uncompressed HD/UHD video with embedded audio and metadata OUTPUTS AUDIO 3,5mm headphone jack, Bluetooth audio OUTPUTS POWER Hirose 12pin (for ENG type zoom lenses); 12V: D-tab, Hirose 4pin, Lemo 2pin; 24V: RS 3pin INPUTS Genlock, HD-SDI**, Timecode (In and Output), all BNC RECORDING FORMATS HD 1920x1080 (interlaced & progressive) 3.2K ProRes 3200x1800* 4K UHD 3840x2160* RECORDING FRAMERATES 0,75 - 100 Fps (progressive) HD, 2K 0,75 - 60 Fps 4K UHD & 3.2K* MPEG-2: 23.98p, 25p, 29.97p, 50i, 59.94i RECORDING CODECS (W/ EMBEDDED AUDIO & METADATA) ProRes 422 422 LT MPEG-2 REC 2020, REC 709, LOG C Rec 2020, Rec 709
SENSOR TYPE
35mm format ARRI ALEV III CMOS (28.17x18.13)
SENSOR PIXEL COUNT
3200x1800 (4K UHD, 3.2K) 2880 x 1620 (HD), 2868 x 1612 (2K), for monitoring with surround area: 3168 x 1772 (HD), 3154x1764 (2K), 3414 x 2198 (4K UHD, 3.2K)
RECORDING PIXEL COUNT
1920 x 1080 ProRes HD, MPEG 2 and HD outputs, 2048 x 1152 ProRes 2K, 3200 x 1800 ProRes 3.2K*, 3840 x 2160 Pro Res 4K UHD and UHD outputs*
LENS MOUNTS
PL mount w/ Hirose connector and LDS, B4 mount w/ Hirose connector, EF mount, PL mount titan (ALEXA Mini)
SHUTTER
Electronic shutter, 5.0° to 356.0°
EXPOSURE INDEX
Adjustable from EI 160-3200 in 1/3 stops (EI 800 base sensitivity)
EXPOSURE LATITUDE
14+ stops over the entire sensitivity range from EI 160 to EI 3200 as measured with the ARRI Dynamic Range Test Chart (DRTC-1)
AUDIO RECORDING
4 channels, 24 bit PCM, 48 kHz
INTEGRATED MOTORIZED ND FILTERS
FSND 0.6, 1.2, 2.1
SOUND LEVEL
< 20 dB(A)
WEIGHT
~ 4.1 kg/9.2 lbs (camera body with PL Lens mount)
DIMENSIONS
Length: 309mm/12.1", width: 139 mm/5.4" , height: 149mm/5.8" (camera body with PL lens mount)
ENVIRONMENTAL
-20° C to +50° C (-4° F to +122° F) @ 95% humidity max, non-condensing, splash and dust-proof through sealed electronics
VIEWFINDER
AMIRA Multi Viewfinder MVF-1 (OLED and LCD) with flip-out LCD screen,
CAMERA CONTROL PANEL
(CCP-1) LCD control panel with option to daisy-chain MVF-1
OUTPUTS VIDEO
2x HD-SDI outputs: 1.5G, (dual) 3G and (dual) 6G; uncompressed HD/UHD video with embedded audio and metadata
OUTPUTS AUDIO
3,5mm headphone jack, Bluetooth audio
OUTPUTS POWER
Hirose 12pin (for ENG type zoom lenses); 12V: D-tab, Hirose 4pin, Lemo 2pin; 24V: RS 3pin
INPUTS
Genlock, HD-SDI**, Timecode (In and Output), all BNC
RECORDING FORMATS
HD 1920x1080 (interlaced & progressive)
3.2K ProRes 3200x1800*
4K UHD 3840x2160*
RECORDING FRAMERATES
0,75 - 100 Fps (progressive) HD, 2K
0,75 - 60 Fps 4K UHD & 3.2K*
MPEG-2: 23.98p, 25p, 29.97p, 50i, 59.94i
RECORDING CODECS (W/ EMBEDDED AUDIO & METADATA)
ProRes
422
422 LT
MPEG-2
REC 2020, REC 709, LOG C
Rec 2020, Rec 709
