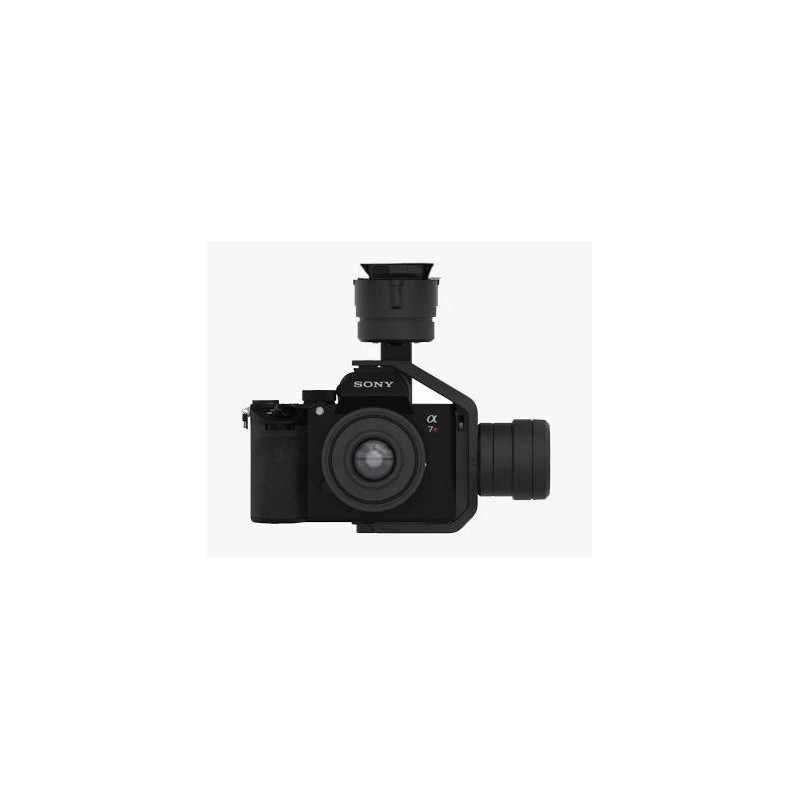

Each Mapping Payload includes a Freefly mapping gimbal, 61MP Sony Alpha 7R IVA, a 24mm lens, a USB drive to capture geo-tagged images and a foam insert that nests under the Astro in the Astro travel case.
The Mapping Gimbal natively mounts to your Astro with the Freefly Smart Dovetail system.* This connection provides power and data communication from the camera to the the ground station controller (and LTE network) for camera controls (camera settings and shutter), gimbal control (tilt), and image preview.
In the Box
Qty 1 - Mapping Payload
Qty 1 - Freefly Mapping Gimbal
Qty 1 - Sony Alpha 7R IVA 61MP camera body (pre-installed in gimbal)
Qty 1 - Sigma 24mm f3.5 mapping lens (p/n 404965)
Qty 1 - USB - C thumb drive
Qty 1 - Foam insert set for Astro Travel Case
Tech Specs
Mapping Payload
Freefly Mapping Gimbal
Sony Alpha 7R IVA camera body (61 megapixel resolution)
Sigma 24mm f3.5 mapping lens (p/n 404965)
Camera and gimbal control from Herelink pilot controller (Herelink sold separately, included with Astro Base)
Typical Astro flights with Mapping Payload are 25-32 minutes, depending on speed / conditions, per pair of batteries
Ships in a box with reusable foam
Custom cut foam insert designed for Freefly Astro Travel Case
