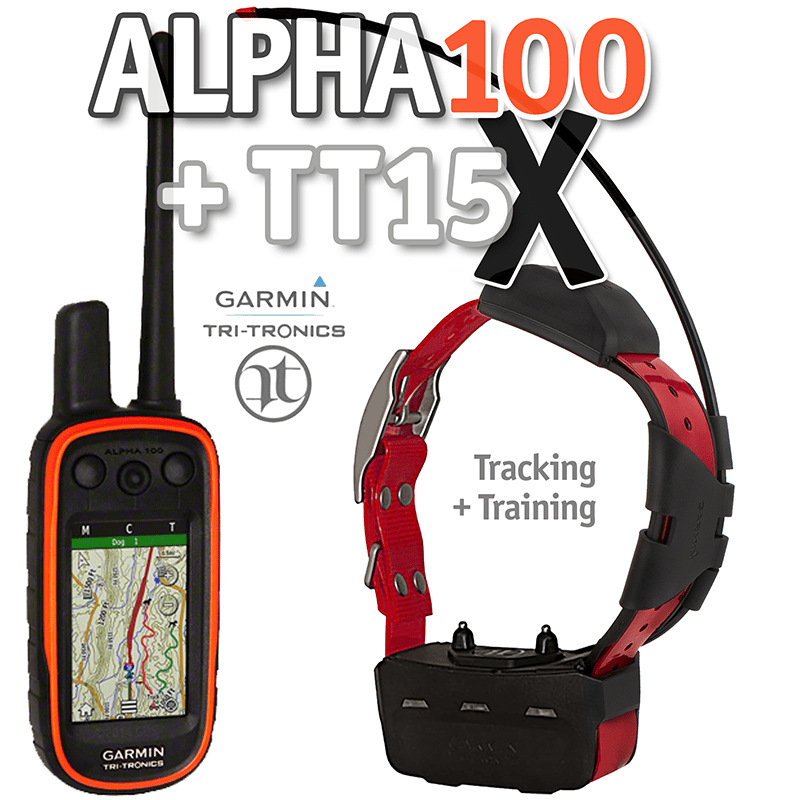

Garmin ALPHA 100 + TT15X Combo Transmitter (Remote)

Handheld GPS

Contains top-notch features such as a high-sensitivity GPS receiver, long battery life, a bright sunlight readable color display and a rugged IPX7 waterproof exterior.

• Touch-screen that's easy to use and works while wearing gloves
• Bright orange tough handheld. Feels good in your hand.
• Fully rubberized outer coating with an over molding
• Improved lanyard attachment
• Battery cap w/ Garmin "backbone" design
• Includes additional 13" Long Range Flex Antenna - Double the range of the standard antenna

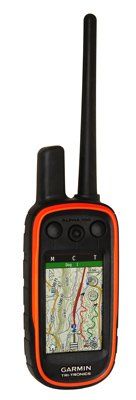

  ALPHA Handheld GPS Features

  The Garmin ALPHA now has 4 Gigabytes internal memory (3.5GB are used by TOPO maps) as well as a micro SD card slot (max. 32 GB class 10 or less) so you can add additional pre-programmed data cards with detailed maps, or add more memory by installing a blank MicroSD Card.
• 3-axis compass
• New Dog Set Up Menu / Universal dog settings including Update Rates and Dog types
• Dog Alerts: Tone-only, Vibration-only or Tone and Vibration
• GeoFence & Radius Alerts
• Dog Trails: Choose from three views: Complete History, Partial History, or no Trail History
• Map Screen option: Show / Hide Dog Status, Distance, Names, and Offscreen Dogs
• Zoom to MAP DOGS - automatically have all dogs appear on our map screen -- no matter how far they are from you
• Power Button control screen - including button lock feature
• Wireless sharing of Dog info to other ALPHA handheld units
• Bird's Eye View Satellite Imagery (1 year subscription included) - import satellite imagery or your own custom maps
• Display Size: 1.53"W x 2.55"H (3" diagonal)

  Using a DC-50 tracking collar with the Alpha 100 handheld is possible, but can be a little tricky to configure.

  First, you must pair each DC-50 you want to track with an Astro 430 handheld in order to view the "track code" for each DC-50 collar (see screenshots below). Once you have each code, it can be shared or entered into your Alpha 100, allowing you to now track that DC-50 collar. Each DC-50 collar will have its own unique track code.



  Additional GPS Features

• High Speed USB mini-B connector for data updates with a PC or Apple Macintosh
• Rugged IPX7 waterproof standards
• Quad helix GPS antenna
• Removeable VHF antenna
• Micro SD card slot (max. 32 GB class 10 or less) available for preprogrammed MapSource mapping detail such as US TOPO, Inland Lakes, BlueChart and City Navigator, or add more memory by installing a blank MicroSD Card.
• Stores 1000 waypoints, 50 routes and 10,000 track points
• Area calculation feature

  ALPHA Handheld Dimensions
• Weight 8.8 oz.
• Height 9.5 in. (standard antenna)
• Height:18 in. (long-range antenna)
• Width: 2.4 in.
• Depth: 1.4 in.

Remote Training Collar Features

E-collar Improvements -- give you the full functionality of a $500 remote trainer for only $250 more than the price of an Astro alone.

You can recreate your favorite Tri-tronics e-collar or build a custom set-up with the perfect stimulation types and settings for each one of your dogs.

The Garmin ALPHA system works really well as BOTH a training collar AND a hunting collar.

• Train and track from one screen
• Train up to 20 dogs per handheld
• 3 physical buttons
• Touchscreen controls
• STIM levels, STIM type, Dog Selector
• Adjust STIM from any screen


• Audio Tone


•  Non-stimulating Vibration


• 18 levels of Continuous STIM
• 18 levels of Momentary STIM

Stimulation Levels, Vibration and Tone

ALPHA has the consistent stimulation levels that Tri-Tronics has used for years.

Garmin has given us two different ways to select/label stimulation levels.

TRADITIONAL STIM -- The first is called "Traditional" and matches the 6 levels Tri-Tronics now uses with each level having a low, medium and high for a total of 18 levels. This will allow folks to exactly match the stimulation setups of any of the Tri-Tronics collars.

LINEAR STIM -- If you prefer a slightly faster way to raise and lower levels with the ALPHA, then I recommend the "Linear" stimulation setup. It gives you 18 levels that exactly matches the low, medium and high levels that TT uses in its Pro series collars.

AUDIO TONE -- We also have the exact same tone so if you dog has been trained with it, there shouldn't be any issues. We are also pleased that the ALPHA tone is a good bit louder than we have seen from TT collars lately.

 VIBRATION -- Garmin has added Vibration as an additional non-stimulation option on the TT15 collar.

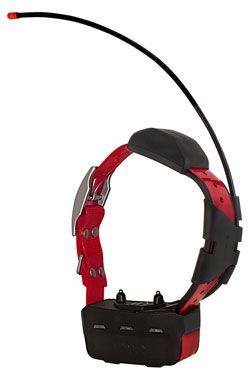

Garmin ALPHA 100 + TT15X Combo Collar

•
•  Up to 80 hours of battery life
•  Update your device via Garmin Express software
•  Remotely activated Sleep Mode further extends battery life (only with Alpha handhelds)
• Waterproof (to 1 ATM -- 10 meters) TT-15x Collar is an improved designed based on the popular TT-15 collar.
• Plastic-coated nylon collar strap. Won't stink. Lasts longer.
• Tough VHF antenna:
  • BRAIDED STEEL Collar Antenna
  • Takes all the abuse a hunting dog can give it in the rough terrain where you hunt.
•  Top-mounted, high-sensitivity GPS / GLONASS receiver
  • Gives better signal reception than GPS alone
• Remote Activated LED light beacons
  • Better SAFETY at night near roads
• USB port on collar
  • Easy software updates
  • Export additional GPS dog data
• Collar Strap
  • User replaceable collar strap. Different colors for different dogs.
  • Fits neck sizes between 13" and 22"
  • K-9 metal collar buckle with metal keeper
•
  ALPHA TT15X Collar Dimensions
  • Weight: 10 oz. with collar strap and antenna
  • Height: 1.75 in.
  • Width: 3.5 in.
  • Depth: 1.85 in.
  • 1" wide collar strap
•


Garmin ALPHA 100 + TT15X Combo Comes With

• Alpha 100 Handheld
• User-replaceable Li-Ion rechargeable batteries in collar and handheld
• Swivel belt clip
• USB cable
• 5" standard and 13" long range handheld antennas
• TT 15X GPS dog device
• BRAIDED STEEL VHF 18 1/2" Standard Collar Antenna
• BRAIDED STEEL VHF 22 1/2" Long Range Collar Antenna
• 2-AC adapters
• 2-Vehicle chargers
• Charging clip
• Short and long contact point sets with wrench
• Non-stim plug
• Owner's manual
• 1 year Garmin warranty
• Up to 20 user-replaceable 1" collar straps (depending on number of collars purchased)



  # of Collars	Included Collar Strap Colors
  1	Red
  2	Red & Black
  3	Red, Black, & Orange
  4	Red, Black, Orange, & Blue
  5	Red, Black, Orange, Blue, & Green
  6	Red, Black, Orange, Blue, Green, & Yellow
  7	Red, Black, Orange, Blue, Green, Yellow, & White
  8	Red, Black, Orange, Blue, Green, Yellow, White, & Silver
  9	Red, Black, Orange, Blue, Green, Yellow, White, Silver, & Pink
  10	Red, Black,, Orange, Blue, Green, Yellow, White, Silver, Pink, & Violet
  11	Red (x2), Black, Orange, Blue, Green, Yellow, White, Silver, Pink, & Violet
  12	Red (x2), Black (x2), Orange, Blue, Green, Yellow, White, Silver, Pink, & Violet
  13	Red (x2), Black (x2), Orange (x2), Blue, Green, Yellow, White, Silver, Pink, & Violet
  14	Red (x2), Black (x2), Orange (x2), Blue (x2), Green, Yellow, White, Silver, Pink, & Violet
  15	Red (x2), Black (x2), Orange (x2), Blue (x2), Green (x2), Yellow, White, Silver, Pink, & Violet
  16	Red (x2), Black (x2), Orange (x2), Blue (x2), Green (x2), Yellow (x2), White, Silver, Pink, & Violet
  17	Red (x2), Black (x2), Orange (x2), Blue (x2), Green (x2), Yellow (x2), White (x2), Silver, Pink, & Violet
  18	Red (x2), Black (x2), Orange (x2), Blue (x2), Green (x2), Yellow (x2), White (x2), Silver (x2), Pink, & Violet
  19	Red (x2), Black (x2), Orange (x2), Blue (x2), Green (x2), Yellow (x2), White (x2), Silver (x2), Pink (x2), & Violet
  20	Red (x2), Black (x2), Orange (x2), Blue (x2), Green (x2), Yellow (x2), White (x2), Silver (x2), Pink (x2), & Violet (x2)

•



Features of the Garmin ALPHA 100 + TT15X Combo

• Download detailed GPS dog trail info

  See the ground that you and your dog actually cover in a day's hunt on a map. Use the Waypoints and Tracks and the Dog Tracks feature from the ALPHA Handheld you can download your days hunt into your PC using either MapSource or Motionbased.com to see your hunt on a topo map or Google Earth.



  Use the Covey Counter to keep up with birds

  Mark the exact location of your coveys using a special waypoint feature. Place your coveys on a map and mark the time of day, elevation, number of birds in the covey and number of birds taken.



  Hunter-friendly Icons so you never get lost

  Mark and identify your truck, hunting lodge, food plots, cover, ATVs and other outdoor-related features with waypoint icons designed for hunting,



Additional Uses

• While the Garmin ALPHA is designed for the hunting dog, many of our customers that don't hunt but enjoy spending time outdoors with their dogs and allowing them to run off leash will find the ALPHA incredibly useful.

  The Garmin ALPHA is perfect when your dog is not by your side. Hiking, camping, horseback riding or bike riding, the Garmin ALPHA will allow your dogs more freedom but allow you to keep a close eye on them and help you locate them if they get lost. Since the Garmin ALPHA serves as a full-featured handheld GPS unit, it will keep you from getting lost, too.



Garmin ALPHA 100 + TT15X Combo Batteries

• Li-ion batteries in both handheld and collar
• Less than 6-hour charge time
• Handheld and collar batteries both user-replaceable
• Snap-on charging clip for no exposed charging jacks
• Dual-lead charger lets you charge the collar and handheld at the same time

  Handheld Battery Runtime:


• Rechargeable 3.7v Li-ion
• Runtime: between 16-20 hours

  Collar Battery Runtimes:

  ~60-80 hours depending on update rate
