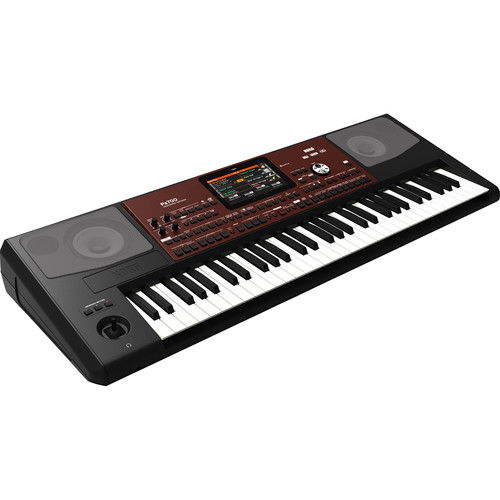

Korg Pa700 61-Key Professional Arranger with Touchscreen and Speakers
| Type | 61 keys (C2 - C7) with velocity |
| System | Upgradable operating system, multitasking, load while play |
| Tone Generator | EDS-X (Enhanced Definition Synthesis - eXpanded) filters with resonance, 3-band EQ on each sound |
| Polyphony | 128 voices, 128 oscillators |
| Effects | Accompaniment/Song: 2 insert effects; 2 master effects (148 types) Keyboard Sounds: 1 insert effect; 2 master effects (148 types) Final Mastering Effects: Limiter, Master EQ Voice Processor: 5 FX, 28 factory, 64 user presets Guitar Processor: 3 FX, 45 factory, 64 user presets |
| Sound Banks | Factory: More than 1700 factory sounds including a multi-layer stereo piano with damper and body resonance, GM/XG sound sets, and 106 drum kits User: 512 sounds, 256 drum kits Digital Drawbars: 9 footages, percussion, key on/off, leakage, rotary speaker effect DNC (Defined Nuance Control) technology, natural ambience drums Full sounds/drum kits editing |
| Sampling | 128 MB compressed (equivalent to 256 MB linear data) Loads Korg, WAV, AIFF and SoundFont formats Saves Korg, WAV, and AIFF formats Full edit, time slice |
| Styles | Factory: More than 370 factory styles, freely reconfigurable sets User: 1152 locations, including user and direct banks Eight Accompaniment tracks, 4 Keyboard Sets, 4 Pads per Style Style settings (sounds and arranger parameters) on each Style Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table) Style/Pad Record with Step Record, Track and Event Edit Style Creator Bot (MIDI Song to Style Converter) Style Controls: 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start, Synchro Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare and Kick Designation, Style to Keyboard Set Mode |
| Keyboard | Keyboard Set Library: Memorize keyboard sound settings Factory: More than 290 factory keyboard sets, freely reconfigurable User: 864 locations, including user and direct banks ‘My Setting’ special keyboard set |
| FX | KAOSS FX: Automatic MIDI FX generator More than 65 factory presets |
| Song Play | Supported Formats: MID, KAR, MP3+Lyrics, MP3+G Select, Start/Stop, Home, and Rewind and Fast Forward controls Lyrics, score, and chord data can be displayed on screen, or on an external video monitor Markers with add, delete, edit, and loop functions Jukebox function |
| MP3 Player | MP3 Player Transpose (+6/-5 semitones), tempo change (±30%) Vocal Remover |
| Recorder | Records MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Microphone, Guitar, Effects, and KAOSS Effects |
| Sequencer | Quick Record (Backing Sequence), Multitrack and Step Record functions Full-featured sequencer, 16 tracks, up to 200,000 events, SMF (MID) native format Chord Sequencer: Chord Sequence recorder and player in Style Play mode Chord Sequences can be saved to Style and SongBook Entries Edit Functions: Delete, Copy from Style/SongBook, Import/Export from/to SMF |
| SongBook | Fully programmable music database, based on Styles, MIDI Songs (MID and KAR files), MP3 Songs, with automatic selection of Style Play and Song Play modes User-definable set lists, with entries selectable from the control panel Filtering and sorting options |
| Compatibility | Pa-Series Models: Styles, Performances, Programs/Sounds, Songs, SongBook Entries, Pads 'i-Series' Models: Styles |
| Pads | 4 x assignable pads, stop button, and pad record function |
| Controls | Master Volume, Fade In/Out, Keyboard-Acc/Song Balance, Ensemble, Octave Transpose, Master Transpose, Joystick, 2 assignable knobs, 3 assignable switches, Tempo +/-, Tempo Lock; Metronome On/Off, Dial, Search, Shift Split, Record |
| Scale | Scale Controls: Virtual quarter tone subscale keypad, 4 x scale presets |
| Pedal Control | Damper pedal (supports half-pedaling with the optional DS-1H pedal) Assignable pedal/switch |
| Audio Inputs | Line (Left/Right): 1/4” / 6.35 mm jacks, +20 dBm, 12 kOhm Mic/Guitar (Left): 1/4” / 6.35 mm jack, with gain control (0 to +40 dB) Mic: 12 kOhms Guitar: 500 kOhms |
| Audio Outputs | Left/Right: 2 x 1/4" / 6.35 mm jack, +21 dBm, 0.003% THD+N @ +18 dBm Headphone Output: 1 x 1/4" / 3.5 mm jack, 16 to 200 Ohms (50 Ohms suggested) |
| Speaker System | Amplification: 2 x 25 W Speakers: 2 x dual-cone speakers in bass-reflex box |
| MIDI | Standard MIDI connectors (In/Out), 2 x 5-pin DIN USB to MIDI using the USB ports Host: Memory and controllers Device: Personal computers Eight user-definable MIDI Setups |
| USB | Type-A (Host), Type-B (Device) 2.0 high-speed connections (480 Mbit/s), low-speed (1.5 Mbit/s), and full-speed (12 Mbit/s) devices can only be connected through a high-speed USB hub |
| Storage | Internal Memory: 960 MB USB external drives (drive not included) microSD card (not included); rear panel slot with plastic cover |
| Display | 7.0" / 177.8 mm wide, capacitive color TouchView TFT display |
| Video Out | RCA connector |
| Clock | Internal system clock |
| Power Consumption | 100 to 240 V, 50/60 Hz, 25 W normal / < 0.3 W in standby |
| Dimensions (WxDxH) | 40.6 x 14.9 x 5.2" / 1,030.0 x 378.3 x 132.0 mm (without music stand) Height with Music Rest: 14.0" / 355.8 mm |
| Weight | 21.8 lb / 9.9 kg |
| Packaging Info | |
|---|---|
| Package Weight | 30.15 lb |
| Box Dimensions (LxWxH) | 45.5 x 21.5 x 10.5" |
