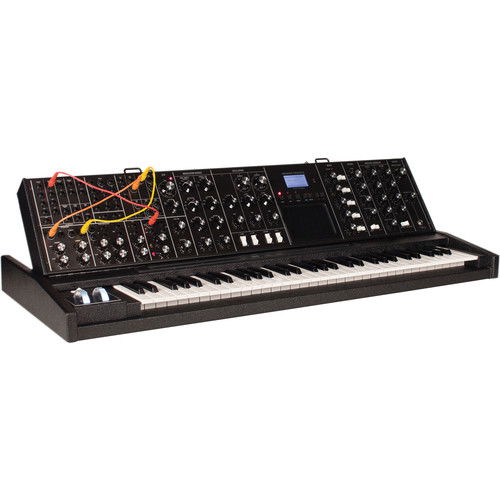

Moog Minimoog Voyager XL Monophonic Synthesizer (Tolex)
| Type | Programmable monophonic analog synthesizer |
| Sound Generation | 3x Oscillators with continuously variable waveform control, 1x Noise Source, 5-input Mixer 2x Filters 2x Envelope Generators 1x LFO 2x Programmable Modulation Sections, Glide and Fine Tune controls |
| Program Memory | 1024 Presets in 8 Banks 896 locations are user rewritable |
| Keyboard | 61-note velocity sensitive keyboard with after-pressure (C to C) Transmits polyphonic MIDI Note On/Off messages along with velocity and aftertouch |
| Controls | Pitch Wheel: programmable, up to ± 31 semitones (2 octaves and a 5th) Modulation Wheel: 0 to 100% Glide and Release Switches: On/Off Ribbon Controller: Single axis controller that generates CV and Gate control signals based on the position of the player's finger. Touch Surface: Programmable, three dimensional surface that generates continuously variable control signals based on the position of the player's finger and the amount of contact area the finger makes with the surface. Master Volume Control: 0 to 100% |
| User Interface | Mode Controls: Preset, Edit and Master function buttons Selection/Navigation Controls: Cursor, Enter, and -1/+1 buttons |
| Patch Panel | Pedal/Control Jacks (14 inputs for external control of various CV and Gate functions, 23 CV and Gate outputs) 2x Bi-Directional Attenuators with Offset Four-Input Mixer section with Offset and Master Attenuator LAG Processor (1 ms to 1 s) A Six-waveform, 2 Output LFO processor with MIDI SYNC and External Clock capabilities |
| Back Panel I/O Ports | AC Power Inlet (universal power supply, 100 to 250 V AC, 50-60 Hz) Power ON/OFF switch Stereo Audio Output jacks (unbalanced outputs) External Audio In jack Mixer Out/Filter In jack 2x TNC Lamp Sockets: supplies 12 V 0.5A (5 W bulb maximum) per connector MIDI In, Out and Thru connections |
| Audio Output | 2x 1/4" (6.3 mm) unbalanced outs (L,R) 1x 1/4" (6.3 mm) TRS with dedicated volume control |
| Control Voltage Out | Keyboard Pitch (with internal trim to calibrate to 1 V/Octave) Keyboard Velocity Keyboard After Pressure Touch Surface X Touch Surface Y Touch Surface A (area) Pitch Bend Wheel Mod Wheel MOD 1 Signal (signal at MOD 1 input) MOD 2 Signal (signal at MOD 2 input) LFO Triangle Wave LFO Square Wave Mod Wheel Mod Buss Output Pedal/On Mod Buss Output Filter Envelope Volume Envelope Sample and Hold Step Sample and Hold Smooth Noise Ribbon Controller CV Output (-5 V to 5 V) |
| Gate Outputs | Keyboard Gate Touch Surface Gate Ribbon Controller Gate Output |
| Mults | 3x 4-way mults (top jack is ring-powered) |
| Control Voltage Inputs | Envelope Rate CV (-5 V to 5 V) Ring-Powered OSC Pitch CV (adj. to 1 V/Octave) (-5 V to 5 V) Ring-Powered OSC Wave CV (all three oscillators affected) (0 V to 5 V) Ring-Powered FILTER Cut-Off CV (-5 V to 5 V) Ring-Powered VCA Volume CV (0 V to 5 V) Ring-Powered VCA Pan CV (-2.5 V to 2.5 V) Ring-Powered LFO Rate CV (-5 V to 5 V) Ring-Powered MOD Mod1 CV (0 V to 5 V) Ring-Powered MOD Mod2 CV (0 V to 5 V) Ring-Powered S&H CV (-5 V to 5 V) Ring-Powered |
| Gate Inputs | NV Release ON/OFF (0 V OFF, 5 V ON) ENV Gate Input (0 V OFF, 5 V ON) LFO Sync ON/OFF (0 V OFF, 5 V ON) S&H Gate Input (0 V OFF, 5 V ON) No footswitch input |
| Active Attenuators | 2x Active Attenuators Channel 1 is normalled to LFO 2 output. So, if nothing is connected to the Channel 1 input jack, the output of Channel 1 will be the attenuated version of the LFO 2 output Channel 2 is normalled to Ribbon output. So, if nothing is connected to the Channel 2 input jack, the output of Channel 2 will be the attenuated version of the Ribbon controller Expression Pedals can be connected to the Attenuator inputs (i.e. they are ring-powered inputs) Amount controls gain of -1 (CCW) to 1 (CW). Thus, the attenuators can create an inverted version of the waveform Offset control allows you to add a DC voltage of -5 V to 5 V to the input signal. The Attenuator output will be clipped to approximately +/-10 V |
| Mixer | 4 Input Mixer Inputs 1 and 2 can be attenuated via front-panel knobs Inputs 1 and 3 can be controlled by Expression Pedals (i.e. ring-powered) Two output CVs (+) and (-) DC offset can be added to signal via OFFSET knob Overall output of Mixer can be adjusted via the Master knob |
| Lag Processor | Rise and Fall time constants are adjustable from 1 ms to 1 s (middle is 100 ms) |
| LFO2 | A MIDI-syncable second LFO source has been added to the Voyager XL. The default frequency range is 0.02 Hz (50 s) to 20 Hz (0.05 s). This range was made to augment the current Voyager LFO which does not go slow-enough for some very slow modulations Inputs: LFO 2 can be Free-running (adjusted by the Rate knob on the front panel) MIDI Sync from external MIDI clock Directly Clocked from a Gate CV via the front panel Clock jack Controlled via external CV or Expression Pedal via the front panel Rate CV jack OUTPUTS: LFO 2 has two complementary LFO outputs labeled (+) and (-). In default mode, these are the same waveform 180 degrees out of phase. WAVEFORMS Available front-panel waveforms: Triangle Square Ramp Saw S&H S&H Smooth |
| Operating System | Flash upgradable via MIDI SysEx |
| Power | 100 to 250 V AC, 50-60 Hz Power input via a standard power cable 1x TNC Lamp Socket (provides 12 V DC for a gooseneck lamp) |
| Dimensions (W x D x H) | Panel Flat: 41.25 x 18 x 3" (105 x 46 x 7 cm) Panel Upright: 41.25 x 18 x 12" (105 x 46 x 30 cm) |
| Weight | 49 lb (22.2 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 56.85 lb |
| Box Dimensions (LxWxH) | 45.5 x 22.5 x 8.0" |
